SGI Projects
MIT's Summer Geometry Initiative is an intensive introduction to concepts in the field of geometry processing. I had the opportunity to participate as a fellow in 2022, during which time I worked with researchers on three projects.
(Download Slides)Orienting Point Clouds
Michael Kazhdan - JHU, Tiago De Souza Fernandes, Anna Krokhine, Qi Zhang
Blog Post
- Deals with the classic problem of assigning normals to unoriented points in a set — older 3D scans may lack normal information
-
Two-phase approach
- Local phase: points are clustered according to their k-nearest neighbors and oriented via fitting to an implicit surface representation
-
Global phase: assign signs to each clusters in a greedy fashion
- Try all 2c combinations of clusters and see which one minimizes an alignment energy
- Merge one level up, then repeat until convergence

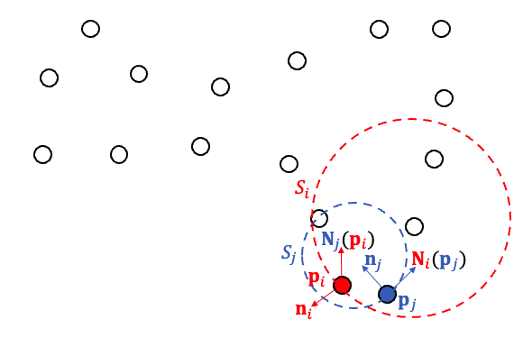

- Alignment energy of neighboring points: based on the average directional similarity when projected onto the other point's corresponding implicit surface

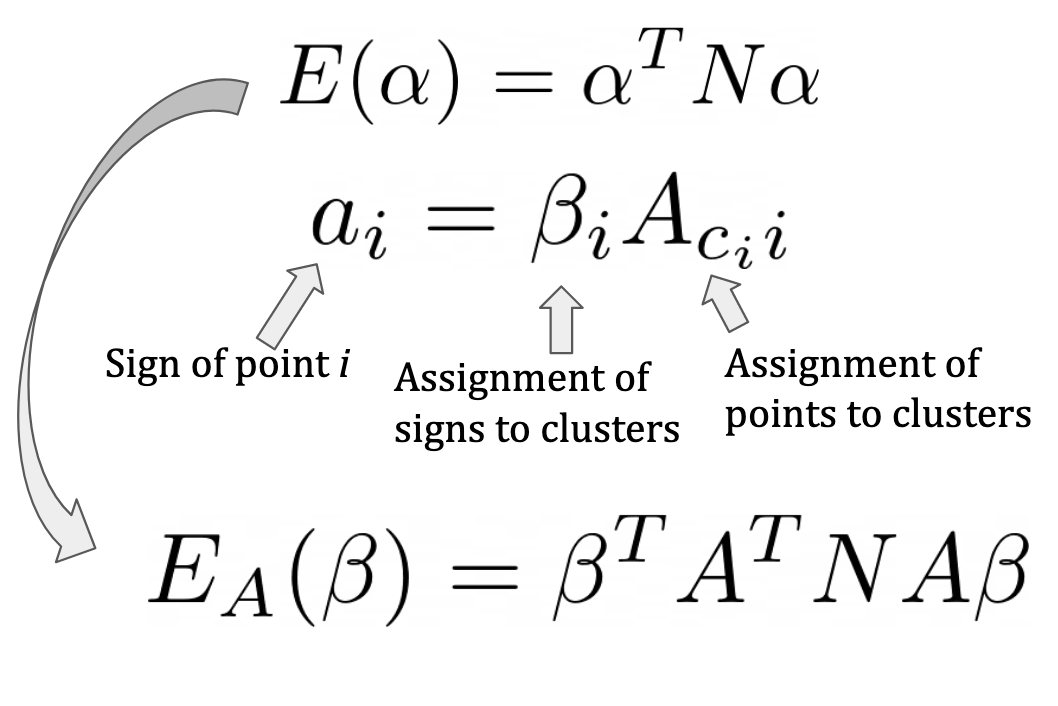

- We turn this into an energy based on signed clusters as follows:

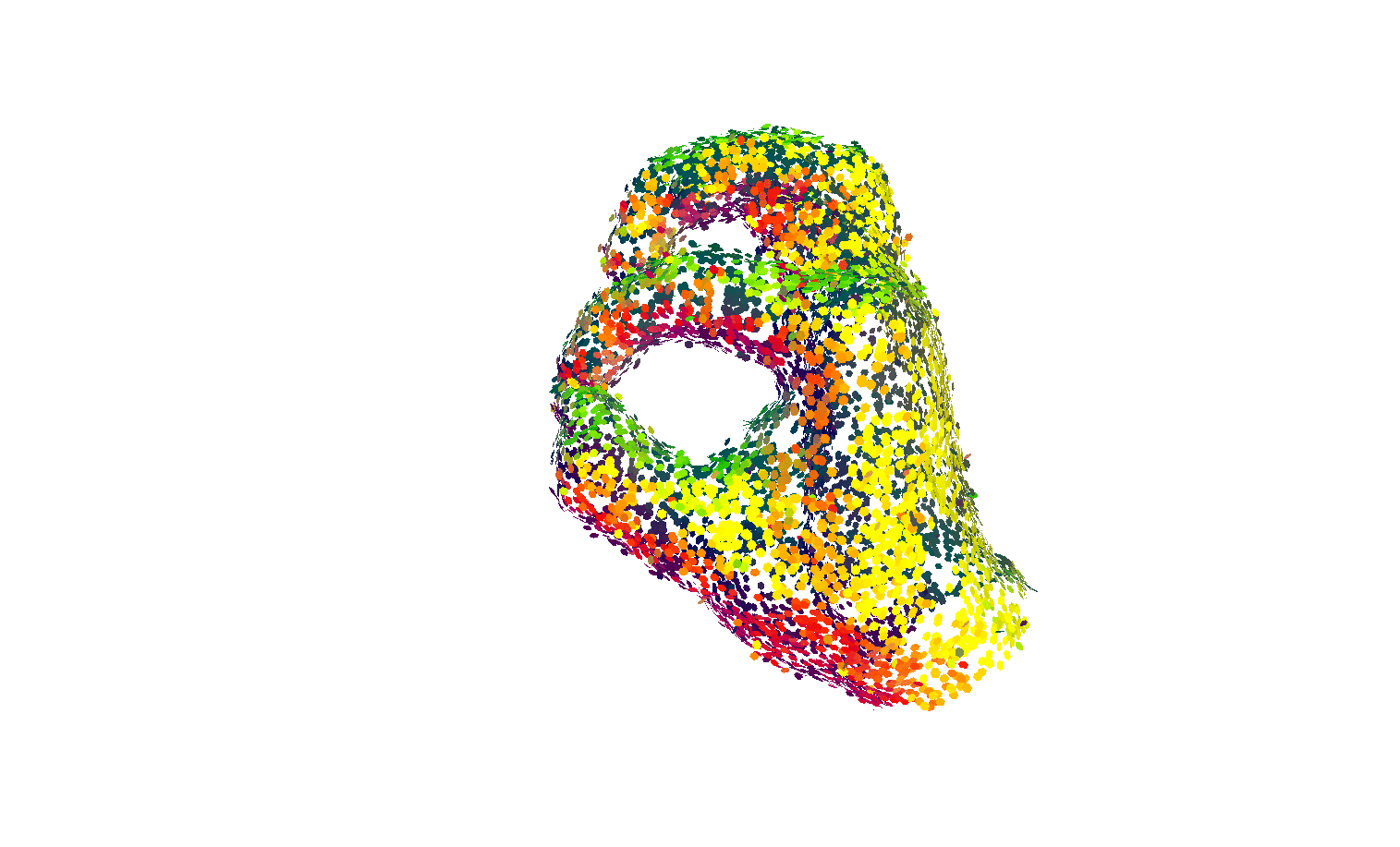

- Development of new implicit surface representations
- Parabolic Fit (dual-axis parabola)

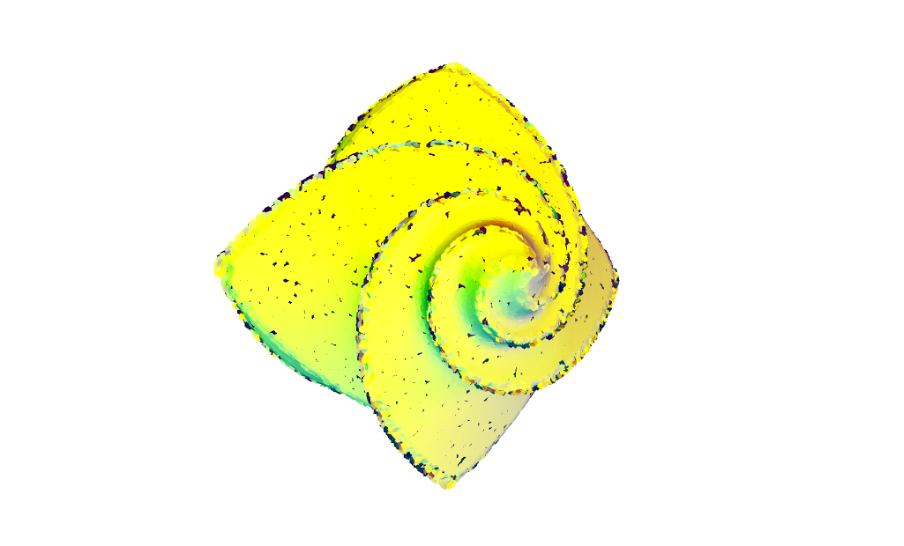

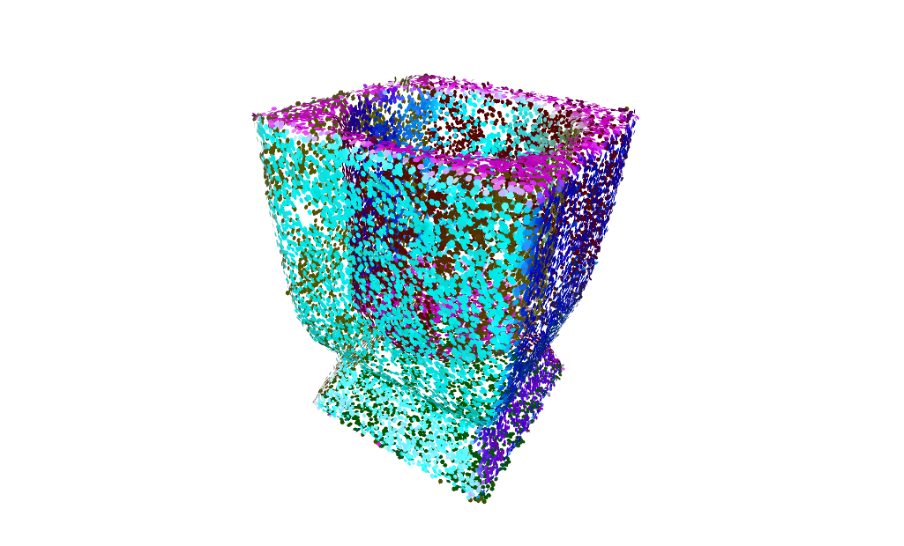

- "Associative" Fit (hybrid approach that compares two surface types, e.g. plane & unconstrained quadratic)

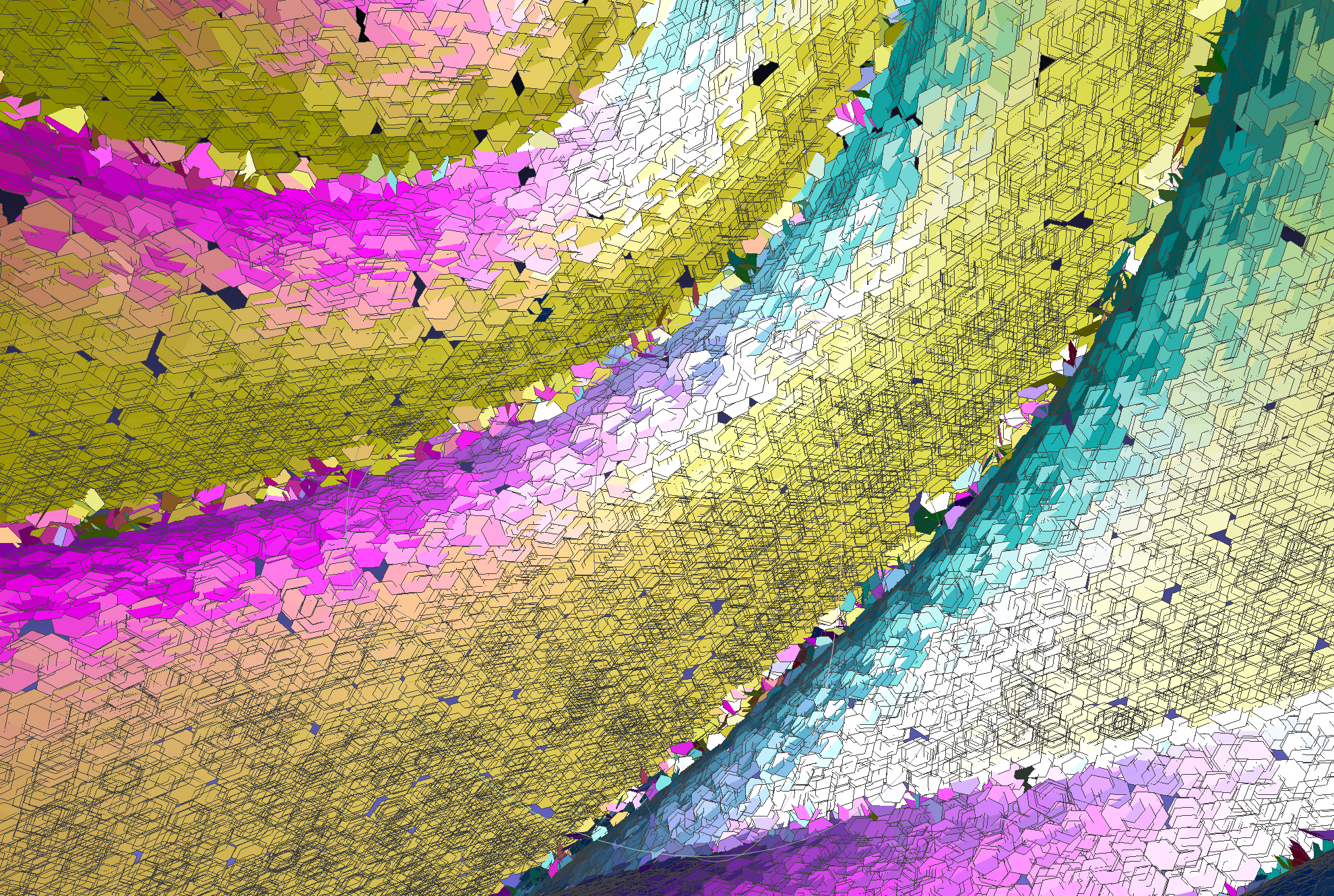

- Wedge Fit (preserves detail at sharp corners)
![](../graphics/sgi_pointclouds/alignment_energy_1.png)
![](../graphics/sgi_pointclouds/alignment_energy_2.png)
![](../graphics/sgi_pointclouds/alignment_energy_3.png)
![](../graphics/sgi_pointclouds/parab.png)
![](../graphics/sgi_pointclouds/hand.gif)
![](../graphics/sgi_pointclouds/assoc_1.png)
![](../graphics/sgi_pointclouds/assoc_2.png)
![](../graphics/sgi_pointclouds/wedge_1.png)
![](../graphics/sgi_pointclouds/wedge_2.png)
Text-Guided Shape Assembly
Matheus Gadelha - Adobe Research, Tiago De Souza Fernandes, Bryan Dumond, Vivien van Veldhuizen
Blog Post
I❤️LA: Compilable Markdown for Linear Algebra
Yong Li - George Mason U., Yotam Gingold - George Mason U., Alec Jacobson - U. of Toronto, Bryan Dumond, Dimitry Kachkovski, Hannah Kaufman, Alejandro Pereira
OpenGL Widgets
Completed for CS 480, Computer Graphics at BU
Lighting Shader
|
|
"Vivarium" Simulation
|
